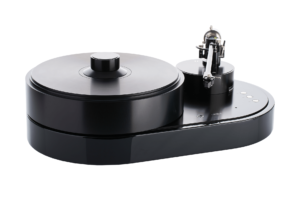

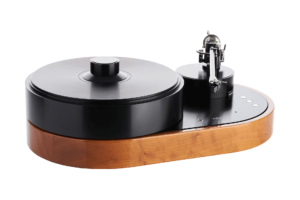

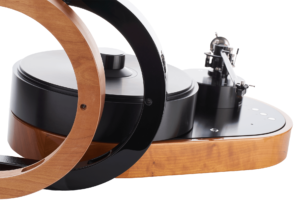

Viella wooden frame
The optional wooden frame for the Viella underlines the character of this record player with an expression of timeless elegance. Available in either deep black piano lacquer or warm oiled cherry wood, it combines the highest level of precision craftsmanship with a sensual, material aesthetic.
Every surface is a statement, elegant, striking, authentic.
The frame is not just a visual upgrade, but is deliberately designed to ensure the acoustic integrity of the Viella. It supports the drive resonance control.
Manufactured to the highest standards, precisely adapted and connected to the movement in terms of structure and materiality, the wooden frame provides additional mechanical calm. A calm stage for the finest details, clear contours and musical clarity.
The instrumentation :
High-precision adjustment instruments for exact correlation of needle and groove.
In-house manufactured knurled screws with perfect haptic feedback transmit the most delicate movements directly to the fine threads.
The magnetic anti-skating system :
Magnetically acting and detailed adjustable anti-skating for perfectly centered and distortion-free groove scanning.
The VTA :
Precisely calibratable and positionable height adjustment with precise verification by the integrated bubble level.
The internal wiring :
Gold plated connector joints, in-house manufactured cables with specific twisting to eliminate magnetic field resonances and discontinuities.
The integrated azimuth adjustment :
Exact adjustment with integrated fine-thread adjustment screw for perfectly aligned groove scanning.
The arm tube :
The ratio of cross-section to unsupported length is precisely matched to the material specifications of the quality aluminum used, guaranteeing the lowest possible resonance behavior.
The counterweight as the basis of dynamics :
Two-piece stainless steel counterweight for perfect weight adjustment. Significantly higher dynamics and directness of the needle due to optimized force/mass distribution throughout the tonearm system.
| EFFEKTIVE LÄNGE | 304,8 mm |
| ABSTAND DREHPUNKT ZU MITTELPUNKT PLATTENTELLER | 291,4 mm |
| ÜBERHANG | 13,4 mm |
| KRÖPFUNGSWINKEL | 17,89 ° |
| EFFEKTIVE MASSE | 13,9 g |
| NULLPUNKT (innen) | 66,04 mm |
| NULLPUNKT (außen) | 120,9 mm |
| BOHRUNGSGRÖSSEN FÜR MONTAGEWINKEL | |
| OHNE ADAPTERBUCHSE | 20 mm |
| AMG VIELLA ADAPTERBUCHSE | 25 mm |
| AMG VIELLA FORTE ADAPTERBUCHSE | 30 mm |
| ADAPTERBUCHSEN FÜR FREMDLAUFWERKE | Divers |
| BOHRUNGSLOCHKREISDURCHMESSER FÜR SCHRAUBEN | 30 / 48 mm |
